Description

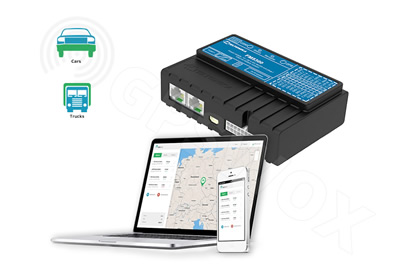

FM5300 is advanced terminal with GLONASS/GPS positioning and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc) quickly and easily.
In case of losing connection FM5300 can store more than 16000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data (coordinates, sensors data and ect.).

Specifications

GSM/GPRS

• Quad-band 900/1800 Mhz; 850/1900 Mhz
• GPRS class 10 (up to 85,6 kbps)
• SMS (text/data)

Interface

• 4 Digital Inputs for object status monitoring
• 4 Analog Inputs (switchable 10 V or 30 V range, 12 bit resolution)
• 4 Digital Open-drain Outputs (controlling external relays, LED, buzzer, etc.)
• 1-Wire interface protocol
• CAN interface
• Power supply (+10... +30) V DC
• 2 Status LEDs
• USB interface
• 2x RS232 ports
• Configuration and firmware update (FOTA and via USB cable)
• External GSM antenna
• External GNSS antenna
• Optional internal (or external) rechargable battery with charge controller
• Voice interface

GPS/GLONASS

• NMEA-0183 protocol
• 32 channel receiver
• High sensitivity, not less than -160 dBm

Package

1 x GPS Tracker
1 x Power cable - 2x10
1 x GPS/GLONASS antenna
1 x GSM antenna
1 x USB cable
1 x Port 1/2 cable
1 x Port 3 cable
1 x User manual
